L2L IPSec Tunnel ASA to IOS

I would like to share with you a case I got that allowed me to explore the ASA, as I am no ASA expert I hope that is not to dumb and will provide some added value but if not then ok I will share it anyway

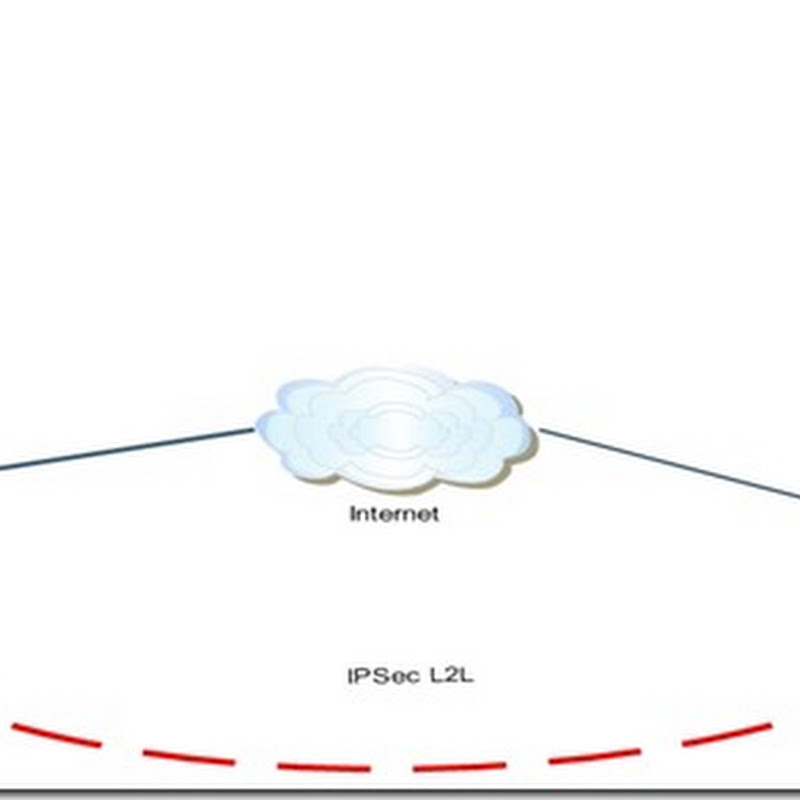

For the case study here lets say there is no network beside the diagram you will see bellow

IPsec

First I would like to share configuration and some debug commands (and there output).

###ASA

crypto isakmp enable <outside-if-name>
crypto isakmp policy 10
authentication pre-share
encryption des
hash md5
group 1
lifetime 86400

access-list IPSec-traffic extended permit ip <SOURCE_NET_SERVER_FARM> <DESTINATION_NET_HOSTS>
crypto ipsec transform-set TS esp-des esp-md5-hmac
crypto map IPSEC 10 match address IPSec-traffic
crypto map IPSEC 10 set peer <C2800-DST-IP>
crypto map IPSEC 10 set transform-set TS
crypto map IPSEC interface <outside-if-name>


tunnel-group <C2800-DST-IP> type ipsec-l2l
tunnel-group <C2800-DST-IP> ipsec-attributes
pre-shared-key <PASSWORD>

###ROUTER

#IKE PHASE 1
crypto isakmp policy 10
hash md5
authentication pre-share
crypto isakmp key <PASSWORD> address 0.0.0.0 0.0.0.0

#IKE PHASE 2 IPSEC
crypto ipsec transform-set TS esp-des esp-md5-hmac
crypto dynamic-map DYN 10
set transform-set TS
crypto map IPSEC 10 ipsec-isakmp dynamic DYN


interface <X>
crypto map IPSEC

# ASA SOME SHOW/DEBUG COMMANDS

#

ciscoasa(config)# sh isakmp sa detail

   Active SA: 1
    Rekey SA: 0 (A tunnel will report 1 Active and 1 Rekey SA during rekey)
Total IKE SA: 1

1   IKE Peer: <C2800-DST-IP>
    Type    : L2L             Role    : initiator
    Rekey   : no              State   : MM_ACTIVE
    Encrypt : des             Hash    : MD5
    Auth    : preshared       Lifetime: 86400
    Lifetime Remaining: 57501

ciscoasa(config)# sh ipsec sa detail
interface: outside
    Crypto map tag: IPSEC, seq num: 10, local addr: <ASA-SRC-IP>

      access-list IPSec-traffic permit ip <SOURCE_NET_SERVER_FARM> <DESTINATION_NET_HOSTS>
      local ident (addr/mask/prot/port): (SOURCE_NET/255.255.255.0/0/0)
      remote ident (addr/mask/prot/port): (DESTINATION_NET/255.255.255.0/0/0)
      current_peer: <C2800-DST-IP>

      #pkts encaps: 71917, #pkts encrypt: 71917, #pkts digest: 71917
      #pkts decaps: 71903, #pkts decrypt: 71903, #pkts verify: 71903
      #pkts compressed: 0, #pkts decompressed: 0
      #pkts not compressed: 71917, #pkts comp failed: 0, #pkts decomp failed: 0
      #pkts no sa (send): 0, #pkts invalid sa (rcv): 0
      #pkts encaps failed (send): 0, #pkts decaps failed (rcv): 0
      #pkts invalid prot (rcv): 0, #pkts verify failed: 0
      #pkts invalid identity (rcv): 0, #pkts invalid len (rcv): 0
      #pkts replay rollover (send): 0, #pkts replay rollover (rcv): 0
      #pkts replay failed (rcv): 0
      #pkts min mtu frag failed (send): 0, #pkts bad frag offset (rcv): 0
      #pkts internal err (send): 0, #pkts internal err (rcv): 0

      local crypto endpt.: <ASA-SRC-IP>, remote crypto endpt.: <C2800-DEST-IP>

      path mtu 1500, ipsec overhead 58, media mtu 1500
      current outbound spi: E1C2DB71

    inbound esp sas:
      spi: 0xE8F3372E (3908253486)
         transform: esp-des esp-md5-hmac none
         in use settings ={L2L, Tunnel, }
         slot: 0, conn_id: 1, crypto-map: IPSEC
         sa timing: remaining key lifetime (kB/sec): (4274983/1861)
         IV size: 8 bytes
         replay detection support: Y
    outbound esp sas:
      spi: 0xE1C2DB71 (3787643761)
         transform: esp-des esp-md5-hmac none
         in use settings ={L2L, Tunnel, }
         slot: 0, conn_id: 1, crypto-map: IPSEC
         sa timing: remaining key lifetime (kB/sec): (4274983/1861)
         IV size: 8 bytes
         replay detection support: Y

# ISAKMP DEBUG

ciscoasa# debug crypto isakmp

HDR + HASH (8) + SA (1) + NONCE (10) + ID (5) + ID (5) + NOTIFY (11) + NONE (0) total length : 192
%ASA-7-713236: IP = <C2800-DEST-IP>, IKE_DECODE RECEIVED Message (msgid=c49feb32) with payloads : HDR + HASH (8) + SA (1) + NONCE (10) + ID (5) + ID (5) + NOTIFY (11) + NONE (0) total length : 192
%ASA-7-715047: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, processing hash payload
%ASA-7-715047: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, processing SA payload
%ASA-7-715047: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, processing nonce payload
%ASA-7-715047: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, processing ID payload
%ASA-7-714011: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, ID_IPV4_ADDR_SUBNET ID received-SOURCE_NET_SERVER_FARM
%ASA-7-715047: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, processing ID payload
%ASA-7-714011: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, ID_IPV4_ADDR_SUBNET ID received--DESTINATION_NET_HOSTS
%ASA-7-715047: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, processing notify payload
%ASA-7-713906: Responder Lifetime decode follows (outb SPI[4]|attributes):
%ASA-7-713906: 0000: 37D453FB 80010001 00020004 00000E10     7.S.............
%ASA-5-713073: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, Responder forcing change of IPSec rekeying duration from 28800 to 3600 seconds
%ASA-7-713906: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, loading all IPSEC SAs
%ASA-7-715001: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, Generating Quick Mode Key!
%ASA-7-715001: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, Generating Quick Mode Key!
%ASA-6-602303: IPSEC: An outbound LAN-to-LAN SA (SPI= 0x37D453FB) between <ASA-SRC-IP> and <C2800-DEST-IP>(user= <C2800-DEST-IP>) has been created.
%ASA-5-713049: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, Security negotiation complete for LAN-to-LAN Group (<C2800-DEST-IP>)  Initiator, Inbound SPI = 0x24d888f2, Outbound SPI = 0x37d453fb
%ASA-7-713906: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, oakley constructing final quick mode
%ASA-6-602303: IPSEC: An inbound LAN-to-LAN SA (SPI= 0x24D888F2) between <ASA-SRC-IP> and <C2800-DEST-IP> (user= <C2800-DEST-IP>) has been created.
%ASA-7-714006: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, IKE Initiator sending 3rd QM pkt: msg id = c49feb32
%ASA-7-713236: IP = <C2800-DEST-IP>, IKE_DECODE SENDING Message (msgid=c49feb32) with payloads : HDR + HASH (8) + NONE (0) total length : 72
%ASA-7-715007: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, IKE got a KEY_ADD msg for SA: SPI = 0x37d453fb
%ASA-7-715077: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, Pitcher: received KEY_UPDATE, spi 0x24d888f2
%ASA-6-713905: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, Starting P2 Rekey timer to expire in 3420 seconds
%ASA-5-713120: Group = <GRP-NAME>, IP = <C2800-DEST-IP>, PHASE 2 COMPLETED (msgid=c49feb32)

# IPSEC DEBUG
ciscoasa# debug crypto ipsec

%ASA-3-713119: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, PHASE 1 COMPLETED
%ASA-7-713121: IP = <C2800-DEST-IP>, Keep-alive type for this connection: DPD
%ASA-7-713906: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, Starting phase 1 rekey timer: 82080000 (ms)
%ASA-7-715006: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, IKE got SPI from key engine: SPI = 0xeaa54840
%ASA-7-713906: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, oakley constucting quick mode
%ASA-7-715046: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, constructing blank hash payload
%ASA-7-715046: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, constructing IPSec SA payload
%ASA-7-715046: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, constructing IPSec nonce payload
%ASA-7-715001: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, constructing proxy ID
%ASA-7-713906: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, Transmitting Proxy Id:
  Local subnet:  SOURCE_NET_SERVER_FARM  mask 255.255.255.0 Protocol 0  Port 0
  Remote subnet: DESTINATION_NET_HOSTS  Mask 255.255.255.0 Protocol 0  Port 0
%ASA-7-714007: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, IKE Initiator sending Initial Contact
%ASA-7-715046: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, constructing qm hash payload
%ASA-7-714004: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, IKE Initiator sending 1st QM pkt: msg id = 0b0b91e2
%ASA-7-713236: IP = <C2800-DEST-IP>, IKE_DECODE SENDING Message (msgid=b0b91e2) with payloads : HDR + HASH (8) + SA (1) + NONCE (10) + ID (5) + ID (5) + NOTIFY (11) + NONE (0) total length : 192
%ASA-7-713236: IP = <C2800-DEST-IP>, IKE_DECODE RECEIVED Message (msgid=b0b91e2) with payloads : HDR + HASH (8) + SA (1) + NONCE (10) + ID (5) + ID (5) + NOTIFY (11) + NONE (0) total length : 192
%ASA-7-715047: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, processing hash payload
%ASA-7-715047: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, processing SA payload
%ASA-7-715047: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, processing nonce payload
%ASA-7-715047: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, processing ID payload
%ASA-7-714011: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, ID_IPV4_ADDR_SUBNET ID received--SOURCE_NET_SERVER_FARM
%ASA-7-715047: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, processing ID payload
%ASA-7-714011: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, ID_IPV4_ADDR_SUBNET ID received--DESTINATION_NET_HOSTS
%ASA-7-715047: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, processing notify payload
%ASA-7-713906: Responder Lifetime decode follows (outb SPI[4]|attributes):
%ASA-7-713906: 0000: 18C33FE5 80010001 00020004 00000E10     ..?.............

%ASA-5-713073: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, Responder forcing change of IPSec rekeying duration from 28800 to 3600 seconds
%ASA-7-713906: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, loading all IPSEC SAs
%ASA-7-715001: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, Generating Quick Mode Key!
%ASA-7-715001: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, Generating Quick Mode Key!
%ASA-6-602303: IPSEC: An outbound LAN-to-LAN SA (SPI= 0x18C33FE5) between <ASA-SRC-IP> and <C2800-DEST-IP> (user= <C2800-DEST-IP>) has been created.
%ASA-5-713049: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, Security negotiation complete for LAN-to-LAN Group (<C2800-DEST-IP>)  Initiator, Inbound SPI = 0xeaa54840, Outbound SPI = 0x18c33fe5
%ASA-7-713906: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, oakley constructing final quick mode
%ASA-6-602303: IPSEC: An inbound LAN-to-LAN SA (SPI= 0xEAA54840) between <ASA-SRC-IP> and <C2800-DEST-IP> (user= <C2800-DEST-IP>) has been created.
%ASA-7-714006: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, IKE Initiator sending 3rd QM pkt: msg id = 0b0b91e2
%ASA-7-713236: IP = <C2800-DEST-IP>, IKE_DECODE SENDING Message (msgid=b0b91e2) with payloads : HDR + HASH (8) + NONE (0) total length : 72
%ASA-7-715007: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, IKE got a KEY_ADD msg for SA: SPI = 0x18c33fe5
%ASA-7-715077: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, Pitcher: received KEY_UPDATE, spi 0xeaa54840
%ASA-6-713905: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, Starting P2 Rekey timer to expire in 3420 seconds
%ASA-5-713120: Group = <C2800-DEST-IP>, IP = <C2800-DEST-IP>, PHASE 2 COMPLETED (msgid=0b0b91e2)

THERE WILL BE CONTINUE…
